□ A brand of the Saft Group (사프트 그룹의 브랜드)
■ Primary lithium-thionyl chloride cell (염화티오닐 리튬1차배터리)
ㅡ Electrochemistry : Li-SOCL₂
ㅡ 커넥터 CN-145550-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

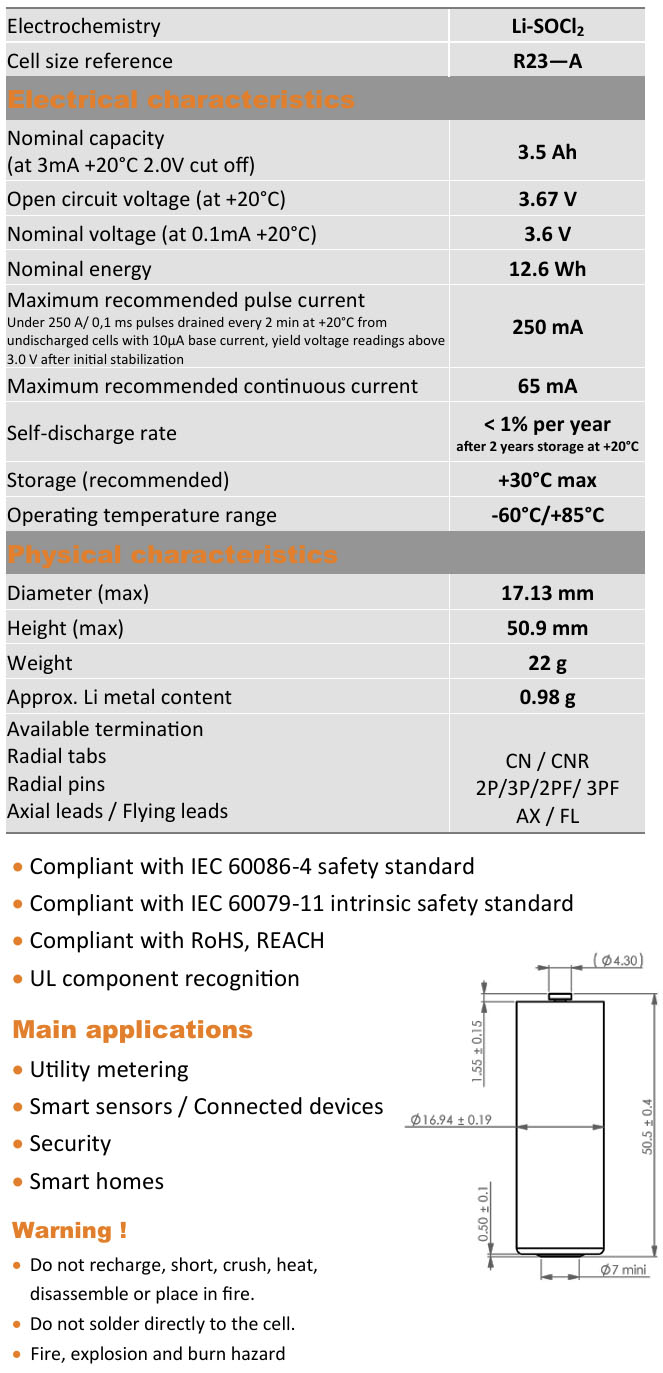

◇ Nominal Capacity : 3.5Ah (3500mAh)
◇ Open circuit voltage : 3.67V
◇ Nominal Voltage : 3.6V
◇ Nominal Energy : 12.6Wh
◇ Maximum Recommended Pulse Current : 250mA
◇ Maximum Recommended Continuous Current : 65mA
◇ Self-discharge rate : < 1% per year
◇ Operating temperature range : -60 ~ 85 ℃
◇ Size : 17.2(18.7) x 52mm (about)
◇ Weight : 23g (about)
