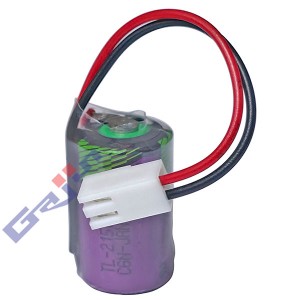

■ Primary Lithium-thionyl chloride (Li-SOCl2) (리튬염화물 1차배터리)

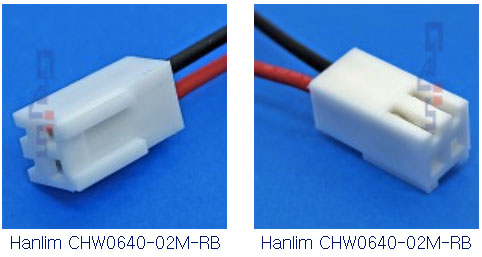

ㅡ 커넥터 Hanlim CHW0640-02M-RB 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

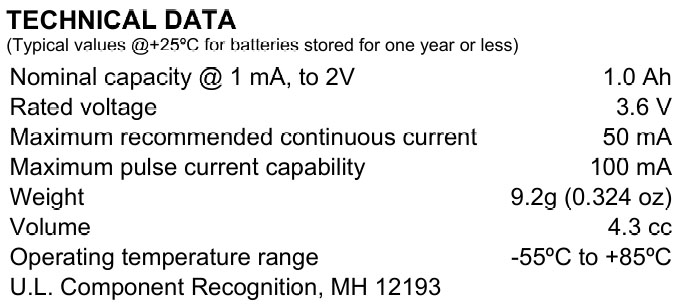

◇ Nominal Capacity : 1Ah (1000mAh) @ 1mA, to 2V
◇ Rated Voltage : 3.6V
◇ Maximum recommended continuous current : 50mA
◇ Maximum pulse current capability : 100mA
◇ Weight : 10g (about)

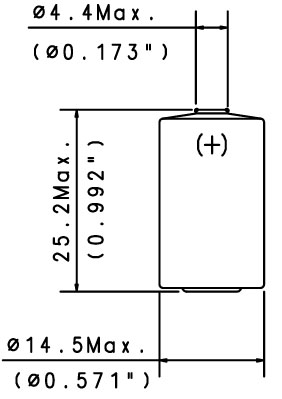

◇ Size : (1/2AA) 14.5(16) x 26mm (about)
◇ Operating temperature range : -55 ~ 85℃
