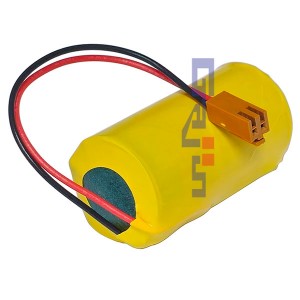

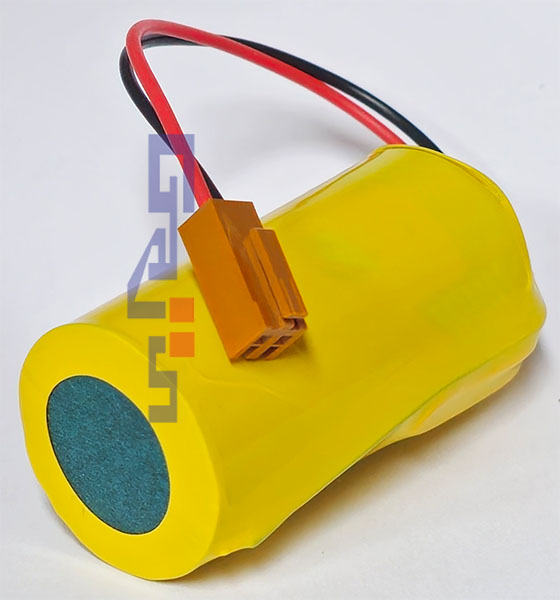

■ Lithium Primary Battery Li/SOCL2 (리튬1차배터리)

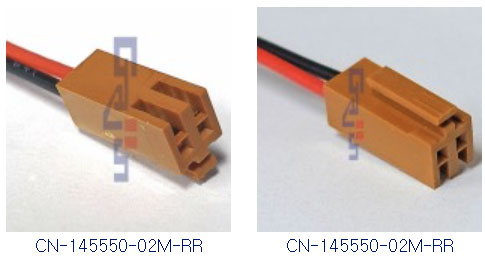

ㅡ 커넥터 CN-145550-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

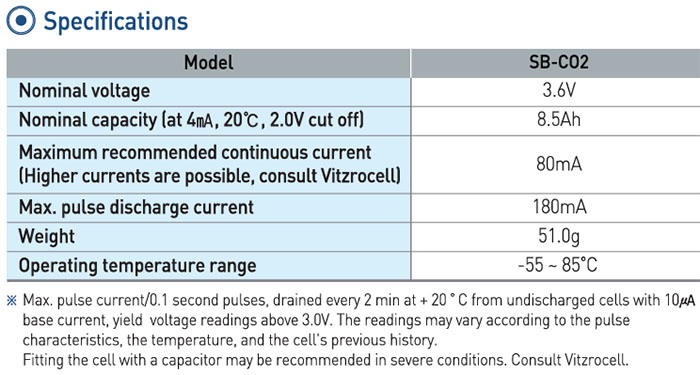

ㅡ Nominal Voltage : 3.6V
ㅡ Nominal Capacity : 8500mAh (8.5Ah)
ㅡ Maximum recommended continuous current : 80mA
ㅡ Max. Pulse discharge current : 180mA

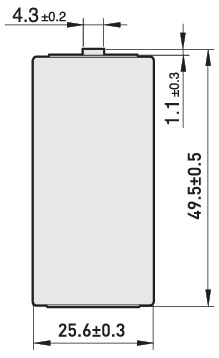

ㅡ Size : (C) 25.7(27) x 51mm (about)
ㅡ Weight : 53g (about)
ㅡ Operating temperature range : -55 ~ 85℃
< ↑ 수축필름의 색깔은 변경될 수 있습니다 >

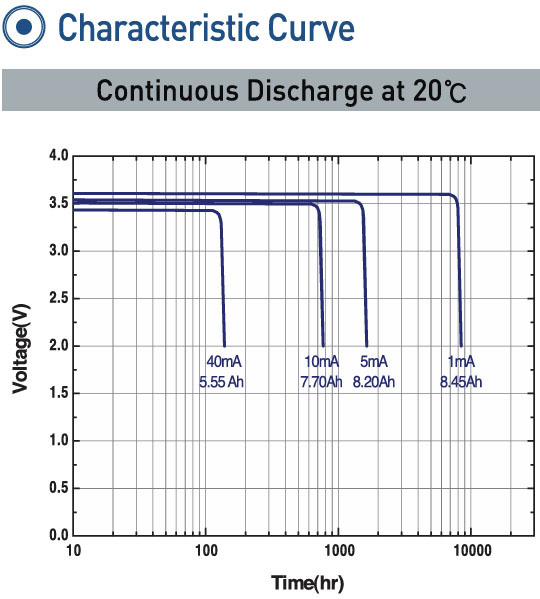

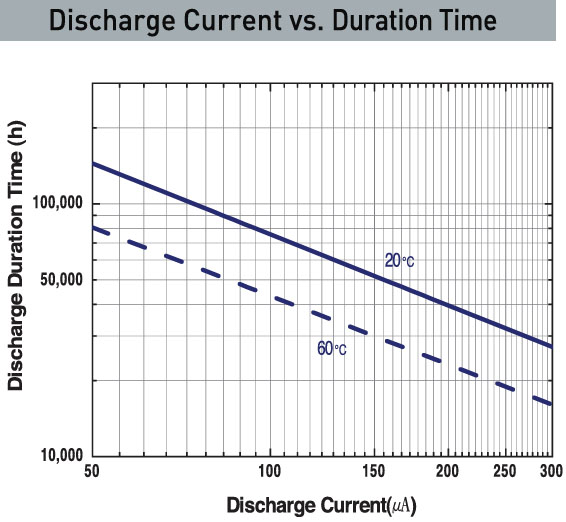

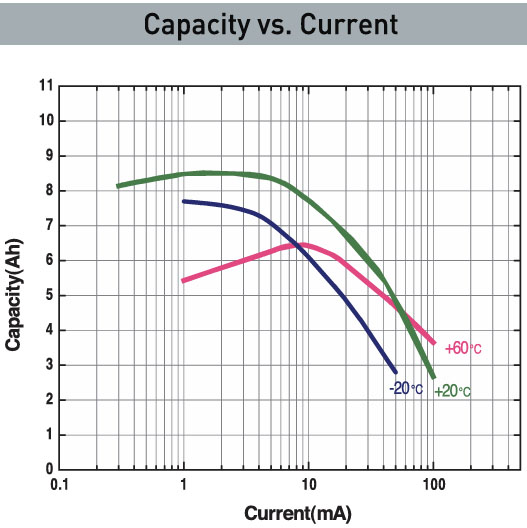

* This data was made on basis of nominal capacity for the purpose of enabling users
to forecast approximate life time.
* in order to calculate precise life time under various environment,
we recommend you to consult Vitzrocell.
◎ Warning
Fire, explosion and severe burn hazard.
Do not recharge, crush, disassemble, hea above 212℉(100℃), incinerate,
short circuit of expose contents to water.
Keep battery out of reach of children and in original package until ready to use.
Dispose of used batteries promptly.
|
