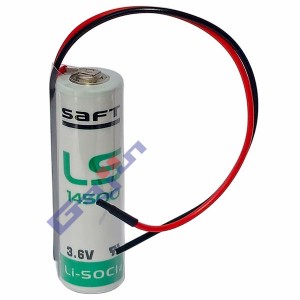

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)
- AA Size bobbin cell High energy density

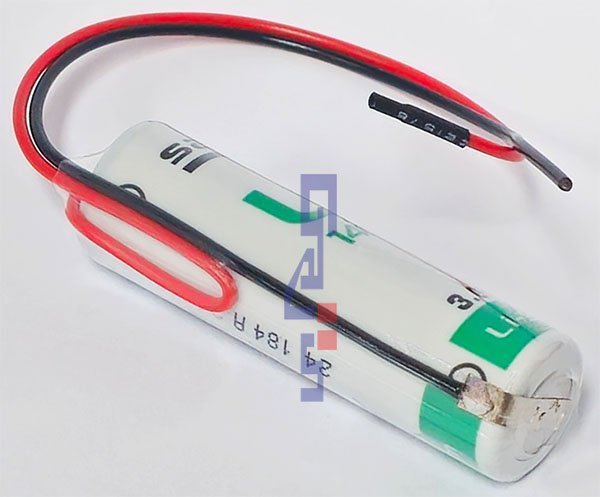

ㅡ 극성주의 : 전선의 빨간색은 플러스(+), 검은색은 마이너스(-)

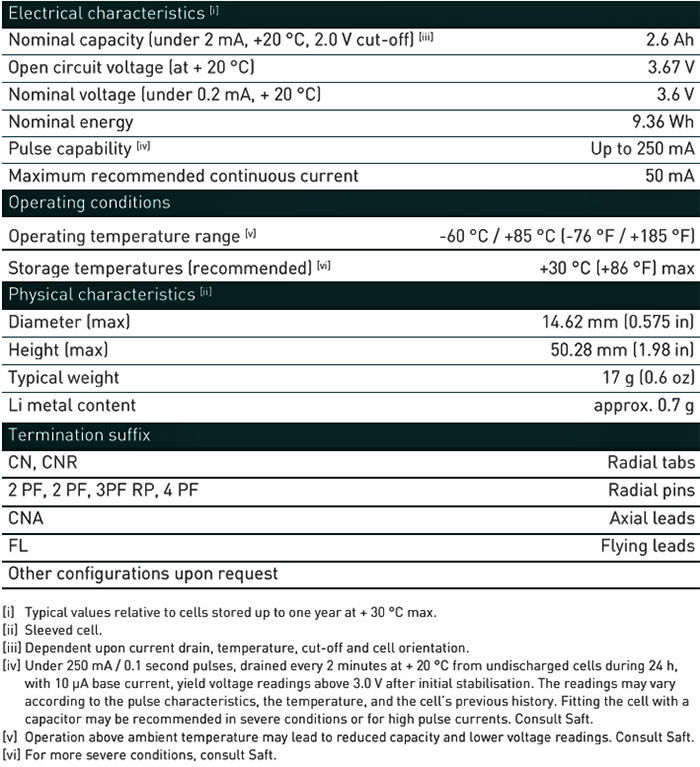

◇ Nominal Capacity : 2.6Ah (2600mAh)
◇ Open circuit voltage : 3.67V (at + 20 ℃)
◇ Nominal Voltage : 3.6V (at 0.2 mA + 20 ℃)
◇ Nominal energy : 9.36Wh
◇ Pulse Capability : Typically up to 250mA
◇ Maximum Recommended Continuous Current : 50mA
◇ Storage Temperature : +30 ℃ (max)
◇ Operating temperature range : -60 ~ 85 ℃

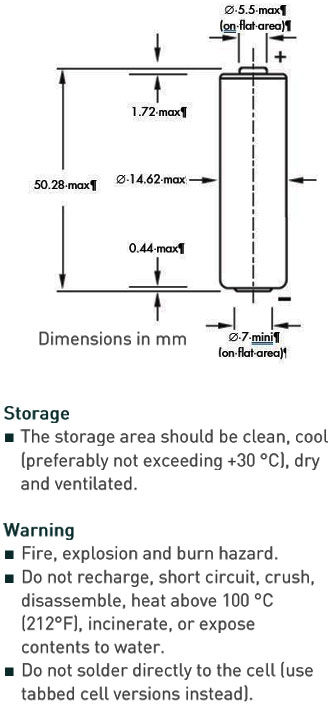

◇ Size : 15(16.5) x 52mm (about)
◇ Weight : 18g (about)
< ↓ 아래는 단셀에 대한 정보입니다 >
