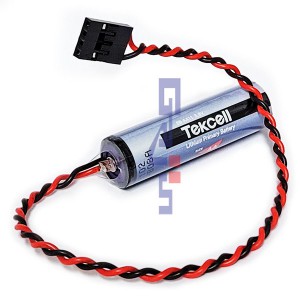

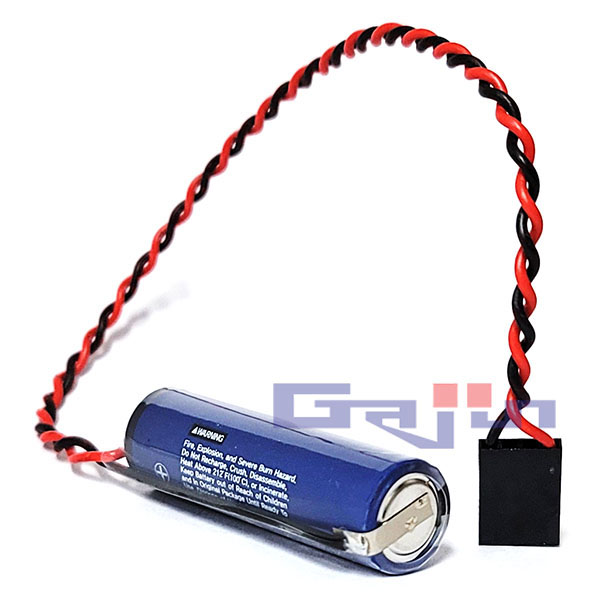

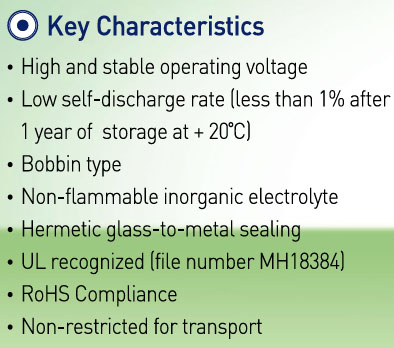

■ Lithium Primary Battery (리튬1차배터리)

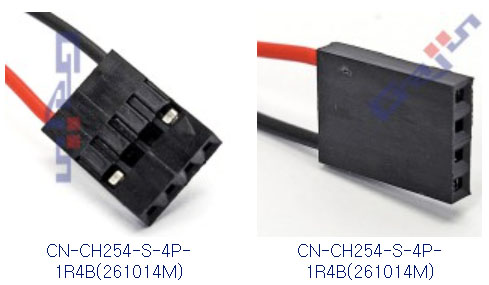

ㅡ 커넥터 CH254-S-04-1R4B 극성주의
ㅡ 전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

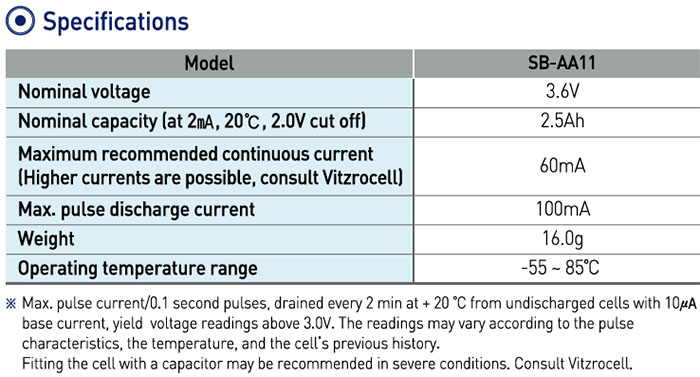

◇ Nominal Voltage : 3.6V

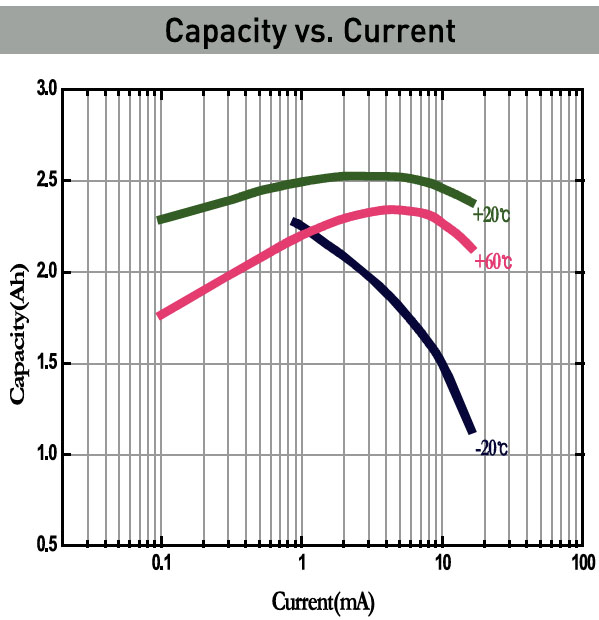

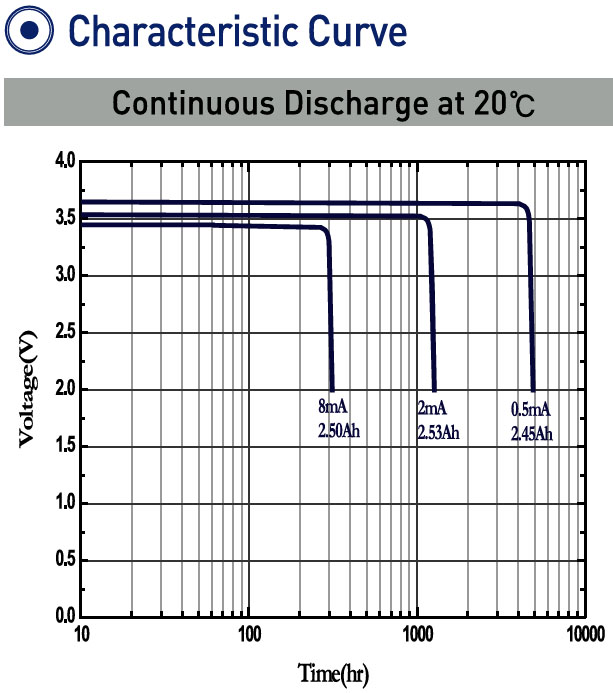

◇ Nominal Capacity : 2.5 Ah (2500 mAh) ㅡ at 2mA, 20 ℃, 2.0 V cut off
◇ Maximum recommended continuous current : 60mA
◇ Max. pulse discharge current : 100 mA
◇ Operating temperature range : -55 ~ 85 ℃

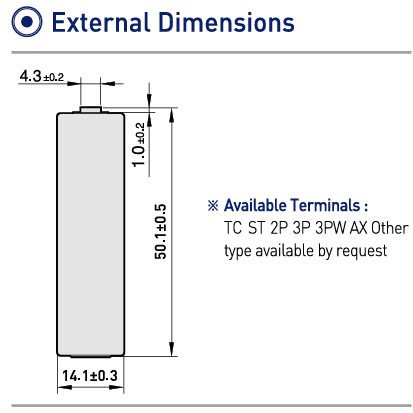

◇ Size : AA 14.6(16) x52 mm (about)
◇ Weight : 18g (about)
