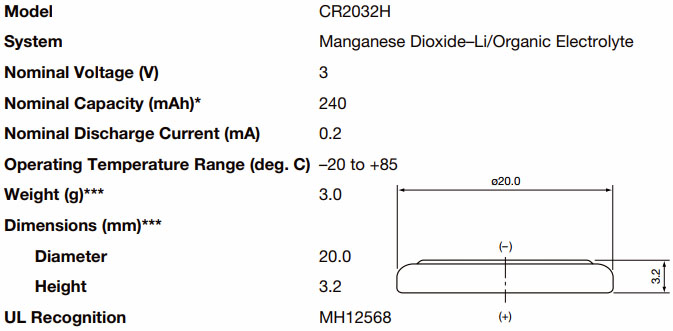

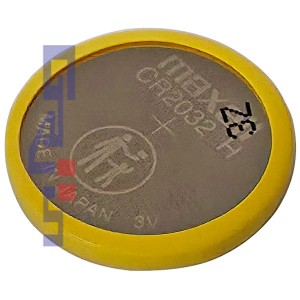

■ Lithium Manganese Dioxide Battery (리튬 이산화망간 1차배터리)

◇ Nominal Voltage : 3V

◇ Nominal Capacity : 240mAh

◇ Nominal Discharge Current : 0.2mA

◇ Operating Temperature Range : -20 ~85 ℃

◇ Size : 20.1 x 3.4mm (about)

◇ Weight : 3.0g

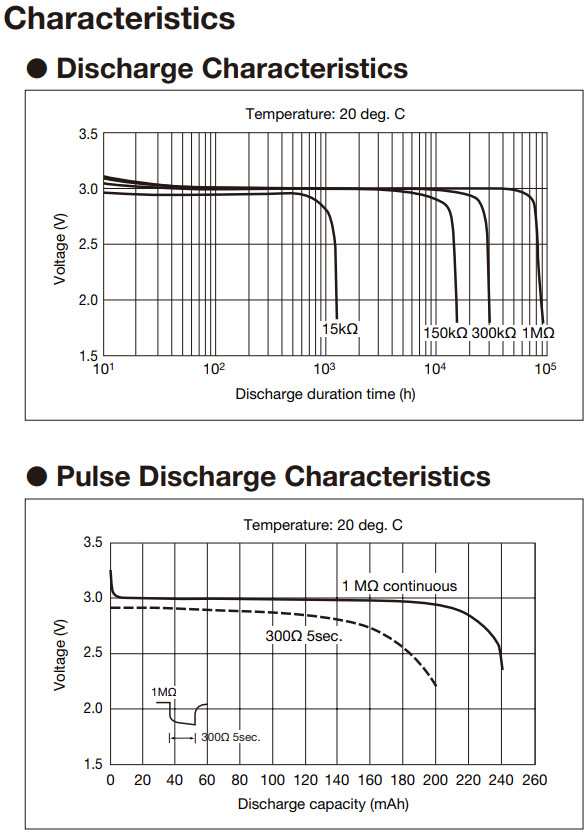

◇ Pulse Discharge : 200mAh (about)

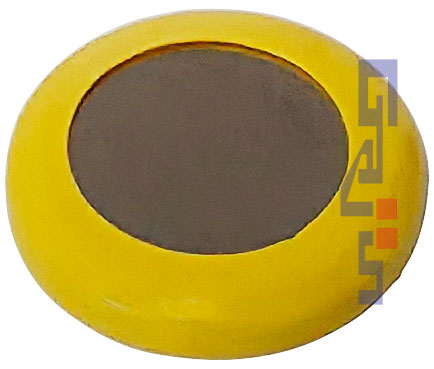

        < 마이너스(-) 극 ↓ >

 < ↓ 아래는 BULK(벌크/비포장)에 대한 정보입니다 >



* Nominal capacity indicates duration until the voltage drops down to 2.0V

 when discharged at a nominal discharge current at 20 deg. C.

** When using these batteries at temperatures outside the range of 0 to +40 deg. C,

 please consult Maxell in advance for conditions of use.

*** Dimensions and weight are for the battery itself, but may vary depending on

 terminal specifications and other factors.
