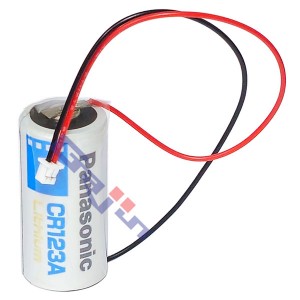

■ Primary Lithium Manganese Dioxide Battery (리튬1차배터리)
ㅡ 커넥터 Molex 51021-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ Nominal Voltage : 3V
◇ Nominal Capacity : 1550mAh
(Nominal capacity is based on the standard discharge current
and cut-off voltage 2.0 V at 20 ℃)
◇ Standard Discharge Current : 20mA
◇ Maximum Continuous Discharge Current : 1000mA ( at 20℃ )
◇ Weight : 18g (about)
◇ Size : (2/3A) 17(18.5) x 37mm (about)
◇ Temperature : (Operation) -40 ~ 70 ℃,
(Storage) -20 ~ 45 ℃
< ↓ 아래는 단셀에 대한 정보입니다 >
