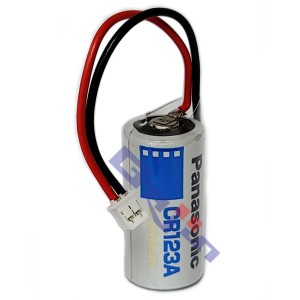

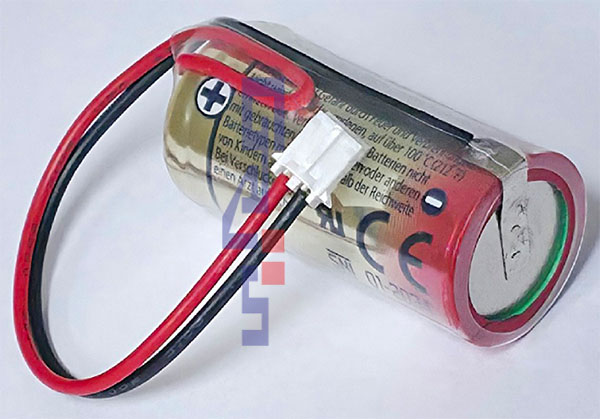

■ Primary Lithium Battery (리튬1차 배터리)

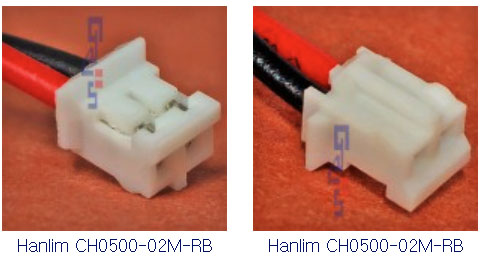

ㅡ 커넥터 Hanlim CH0500-02M-RB 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

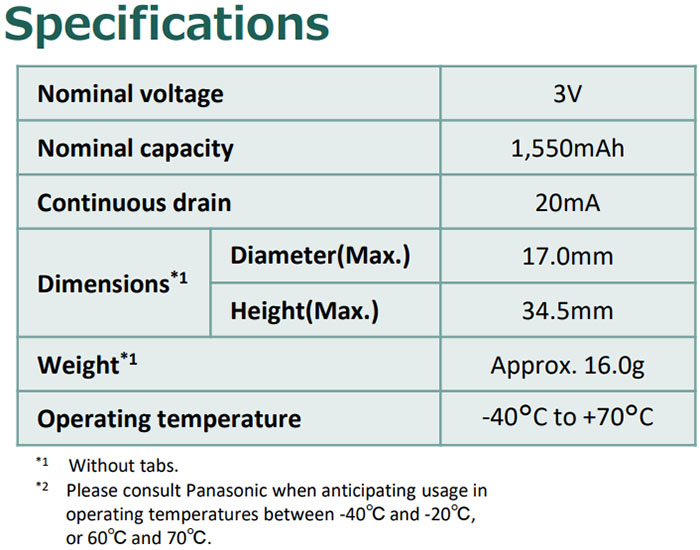

◇ Nominal Voltage : 3V
◇ Nominal Capacity : 1550mAh
(Nominal capacity is based on the standard discharge current and
cut-off voltage 2.0 V at 20 ℃)
◇ Standard Discharge Current : 20mA
◇ Maximum Continuous Discharge Current : 1000mA ( at 20 ℃ )
◇ Weight : 18 g (about)

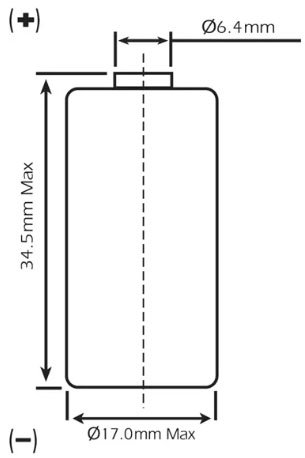

◇ Size : (2/3A) 17.5(19) x34.5(36) mm (about)
◇ Temperature : (Operation) -20 to 60 ℃, (Storage) -20 to 45 ℃
< ↓ 아래는 단셀에 대한 정보입니다 >
