ㅡ 플러스(+) 2핀 간격 : 10 mm

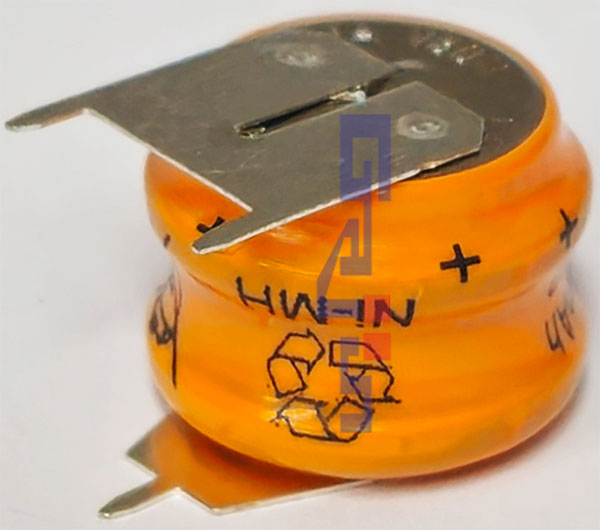

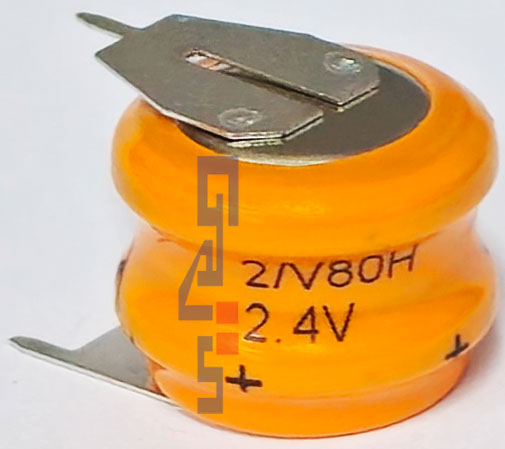

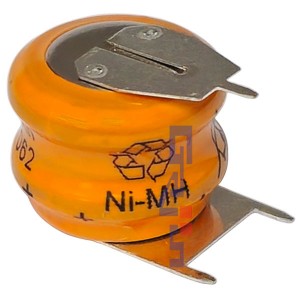

■ Nickel Metal Hydride  (Ni-MH / 니켈수소 충전배터리)

◇ Nominal Voltage : 2.4V

◇ Typical Capacity : 80mAh

◇ Nominal Capacity : 70mAh

◇ Max. Discharge Current (cont.) : 140mA

◇ Typical Capacities : 53mAh at 1 CA / 0.90 V,   27 MAh at 2 CA / 0.90 V

◇ Normal Charging : 7mA (for 14 ~ 16 h)

◇ Accelerated Charging (20℃) : 14mA (for 7 ~ 8 h)

◇ Fast Charging : 35mA (for 3 h)

◇ Trickle Charging : 2.1mA

◇ Overcharge (20 ℃) : 7mA continuous,  14mA 1 year

◇ Charge Retention (20℃) : 90 (Capacity available after 1 month storage at 20 ℃)

◇ Weight : 9g

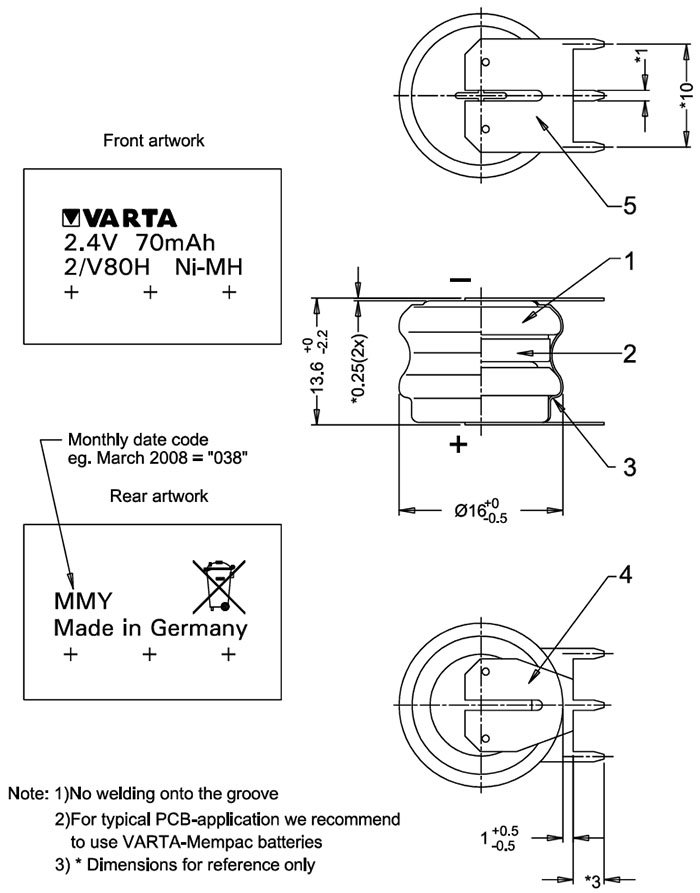

◇ Size : 16 x 13.6mm

◇ Temperature : (Charge) 0 ~ 65 ℃

                (Discharge) -20 ~ 65 ℃

           (Storage) -40 ~ 65 ℃

◇ Life Expectancy (typical) : 1000 Cycles

         < ↓ 플러스(+) 2핀 >

           < ↓ ↑ 마이너스(-) 1핀 >
